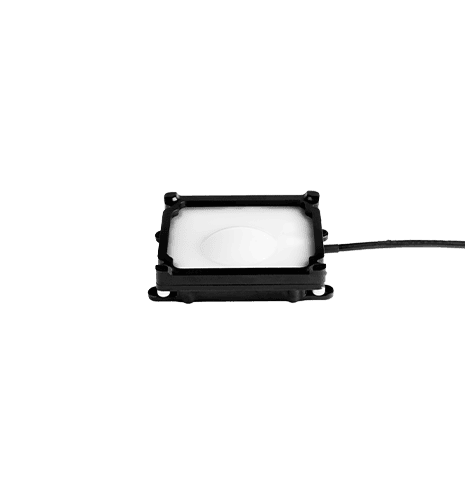

BHARATH RADAR
Terrain Following & Collision Avoidance IBR- 30 M
IoTechWorld Avigation designs “Radar” (Bharath Radar) systems, “Terrain following” & “Collision Avoidance” which provides unmatched accuracy, reliability, and performance. As per “Make in India initiative by Modi Ji” this component has been designed, developed, and manufactured in India with rigorous field testing to ensure quality. Navigate complex environments with confidence using our radar, which provides accurate terrain mapping and obstacle detection, backed by comprehensive after-sales support and a strong PAN-India presence.
| Parameter | Specification (Terrain) | Specification (Collision) |
|---|---|---|
| Azimuth Angle | ±15° | ±50° |
| Elevation Angle | ±5° | -4˜+8° |
| Max EIRP (dBm) | 16 | 16 |
| Ranging Accuracy (m) | ±0.1 | ±0.1 |
| Detect Range (m) | 0.10-20 | 02-30 |
| Range Resolution (m) | 0.12 | 0.12 |
| Transmitting Frequency (GHz) | 77-81 | 77-81 |
| Refresh Rate (Hz) | 30 | 30 |
| Bandwidth (GHz) | 4 | 4 |
| Operating Voltage (VDC) | 4.5~5.5VDC | 4.5~5.5VDC |
| Operating Temperature | -40°~+65° | -40°~+65° |
| Data Interface | CAN | CAN |
| Power Consumption | 2.08 | 2.08 |
| Size (mm) | 88.7*66.4*15.2 | 88.7*66.4*15.2 |
| Weight (g) | 90 | 90 |
- Advanced sensing technology, Empowering your Drone.
- Provides object detection & terrain mapping.
- 77-81 GHz frequency band, 30m range, & 60°/30° field of view.
- Reliability & Performance, even in challenging environments (-40°C to +65°C).
Purpose: Used to detect and avoid obstacles in the drone’s flight path, preventing collisions and ensuring safe operation & maintain a constant altitude above the ground, ensuring safe and efficient flight, especially in challenging terrain.
Technology:Likely employs millimeter-wave radar technology for accurate object detection & terrain mapping.
Range: Can detect objects at a specified distance, depending on the radar’s capabilities.
Accuracy: Offers precise object localization and tracking.
Integration: Designed to integrate seamlessly with drone flight controllers and navigation systems.
Environmental Resilience: Can operate in various weather conditions and environments.
Real-Time Terrain Adaptation:
The terrain radar might be designed to adapt to changing terrain conditions in real-time, ensuring accurate altitude adjustments and obstacle avoidance as it changes its direction.
Advanced Obstacle Detection Algorithms:
IoTechWorld Avigation might employ proprietary algorithms for object detection that are more accurate, reliable, and capable of identifying a wider range of objects compared to standard radar systems, and changes its direction accordingly.
Enhanced Environmental Resilience:
The radar might be engineered to operate effectively in various environmental conditions, such as low visibility, rain, or interference, ensuring reliable performance in challenging scenarios.
